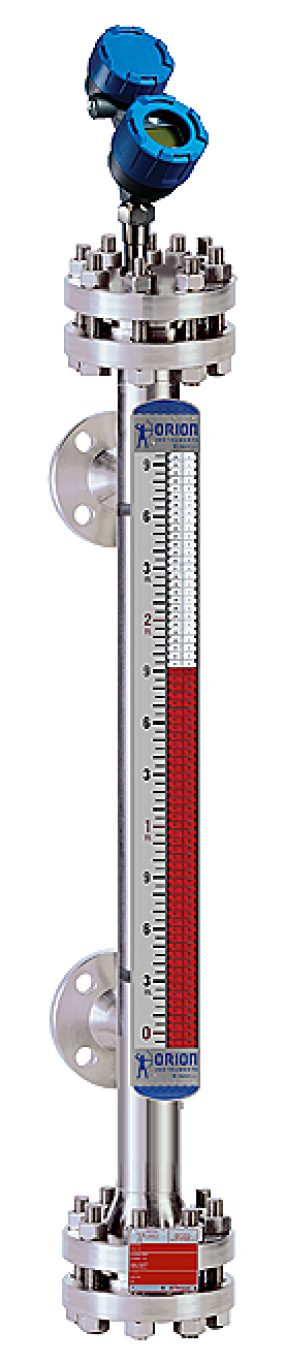

ATLAS, AURORA, GEMINI & VECTOR: With 4 featured MLI products available to choose from.

Click the button below to learn which product is most suitable for your needs.

The ECLIPSE guided wave radar transmitter is based upon the technology of TDR (time domain reflectometry). TDR utilizes pulses of electromagnetic energy transmitted down a wave guide (probe).

When a pulse reaches a liquid surface that has a higher dielectric constant than the air (er = 1) in which it is traveling, a portion of the pulse is reflected. One universal ECLIPSE Model 706 transmitter can be used and interchanged with all probe types, and offers enhanced reliability as it is suitable for use in critical SIL 2 hardware safety loops.

The ECLIPSE guided wave radar transmitter is based upon the technology of TDR (time domain reflectometry). TDR utilizes pulses of electromagnetic energy transmitted down a wave guide (probe).

When a pulse reaches a liquid surface that has a higher dielectric constant than the air (er = 1) in which it is traveling, a portion of the pulse is reflected. One universal ECLIPSE Model 706 transmitter can be used and interchanged with all probe types, and offers enhanced reliability as it is suitable for use in critical SIL 2 hardware safety loops.

KOTRON MODEL 805: The Kotron® Model 805 Smart Transmitter is a loop-powered, 24 VDC, liquid-level transmitter based on proven RF Capacitance technology.

Encompassing a number of significant engineering accomplishments, this high performance RF level transmitter is designed to provide reliable measurement performance well beyond that of competitive units. The KOTRON Model 805 operates on a remarkably low amount of current. A microprocessor controls the measurement engine, drives the liquid crystal display, enables keypad operation, controls HART® communications and provides a 4–20 mA output.

Pulsar Measurement is a worldwide leader in ultrasonic instrumentation for wastewater, industrial, and environmental markets.

Since 1986 we have developed, manufactured and marketed industrial flow and level monitoring instruments including ultrasonic level transmitters, clamp-on ultrasonic flow meters, and open channel flow meters.

The Sludge Finder 2 provides reliable and continuous sludge blanket level measurement. The two-part system has been purposely designed for sludge blanket level measurement, operating ultrasonically through a liquid. The Sludge Finder 2 uses proven echo processing algorithms to identify the sludge interface level using state-of-the-art technology only found in this unit.

Drexelbrook provides the widest offering of product solutions to the level and analytical measurement market.

With over 50 years’ experience we focus on solving the most difficult applications with the best technology available. This includes RF Admittance/Capacitance, Ultrasonic, Open Air Radar, Magnetostrictive, Hydrostatic, and Tuning Fork.

SINGLE POINT:

ECHOTEL Model 961 offers the ultimate solution to reliable single point liquid level measurement. This advanced switch uses pulsed signal technology for superior performance in difficult process conditions, and to provide excellent immunity from sources of electrical noise interference. Extensive self-testing of the electronics and transducer make this advanced switch suitable for use in Safety Integrity Level (SIL) 2 loops.

DUAL POINT:

ECHOTEL Model 962 is a dual point switch that can be used as a level controller, or to control pumps in an auto fill or auto empty mode. The tip sensitive lower gap performs well in aerated or foamy liquids, and can measure to within 1.4" of the vessel bottom. The rigidity of the unique flow-through upper gap allows separations of up to 125" (318 cm) between the upper and lower transducer gaps.

Echotel® Model 961 Ultrasonic Level Switches use pulsed signal technology for superior performance in difficult process conditions, and to provide excellent immunity from sources of electrical noise interference.

Extensive self-testing of the electronics and transducer make this advanced switch suitable for a wide variety of hygienic level switch applications. Model 961 is offered with either a 5-amp relay or a current shift electronics. The relay output electronics has a DPDT relay for level detection, and a SPDT malfunction relay. The current shift version indicates 8 mA during normal operation, 16 mA as a level alarm condition and a user-selectable 3.6 or 22 mA malfunction indication.
